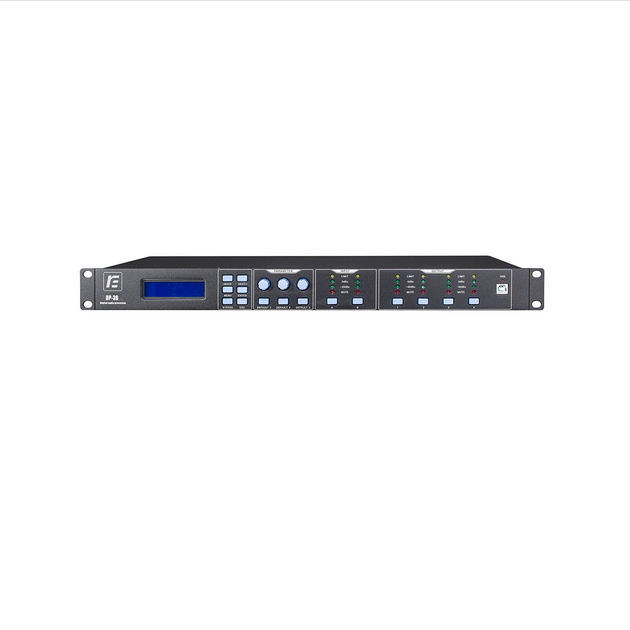

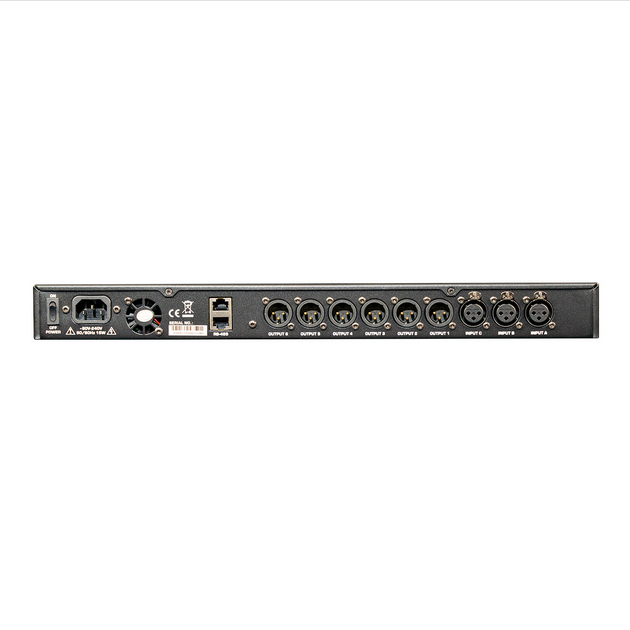

Digital Signal Processors 3 IN 6 OUT
Spesifikasi
- Input/Output: 3 in/6 out
- Input: 10kΩ
- Output Impedance : 47Ω
- MAX input level: +20dBu
- MAX output level: +20dBu
- Frequency response: 15Hz~20kHz，±0.25dB
- Dynamic range: ＞115dB,22Hz~22kHz
- THD: ＜0.006%，20Hz~20kHz@+10dBu
- Noise ratio: ＜0.0015%，1kHz@+10dBu
- Equivalent input noise: ＜50uV
- Sampling rate: 96kHz
- SNR: ＞100dB，20Hz~20kHz
- CMMR: ＞60dB
- Crosstalk: ＜-95dB
- Analog Converter: 24bitPCM
- PEQ: 6 Parametric per I/O
- Fliter: Each input/output with level 1 and level 2 all-pass fliter
- Delay: 1000ms per I/O
- Frequency divider: Butterworth,Bessel,Linkwitz-Riley, 12.18.24.36.48dB/octave
- Attack: 4.5ms
- Power: 50/60Hz 90-240V AC
- Dimensi (H×W×D)
- Berat Bersih: 3.26kg
